  • Manufacturer: H2Trac (The Netherlands)
  • Robot: EOX 175
  • Task(s): Electrical autonomous tractor
  • Development start: 2014
  • Pricing: Sale. €280,000 (US $315,000), price for hydrogen version will be around €420,000 (US $473,000)

Description

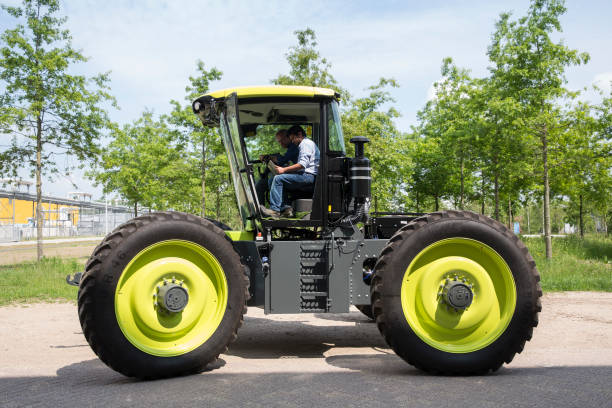

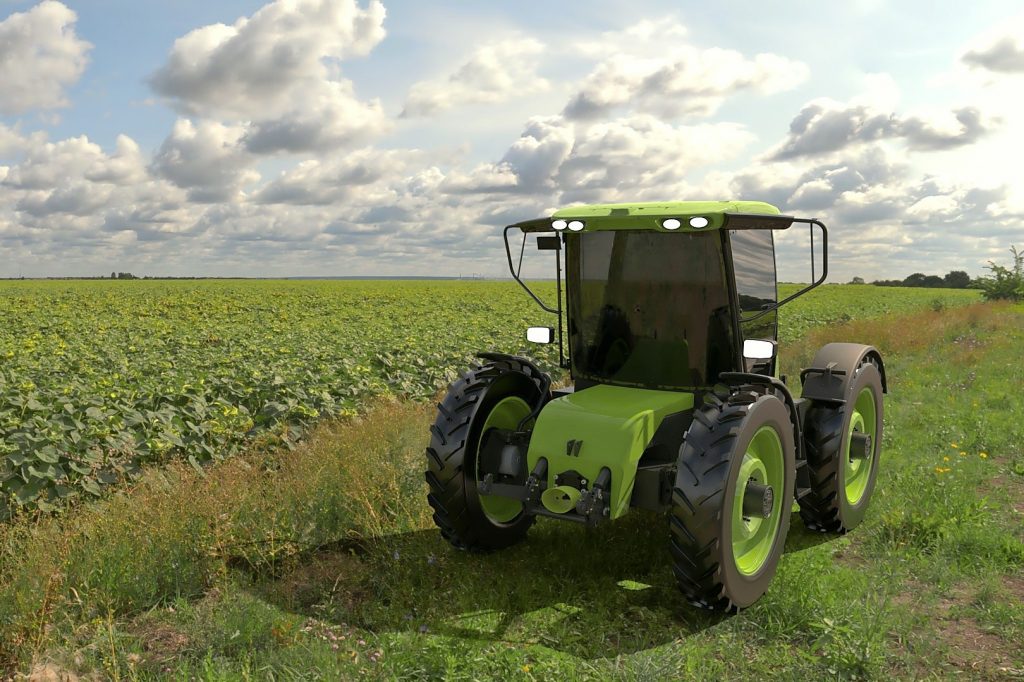

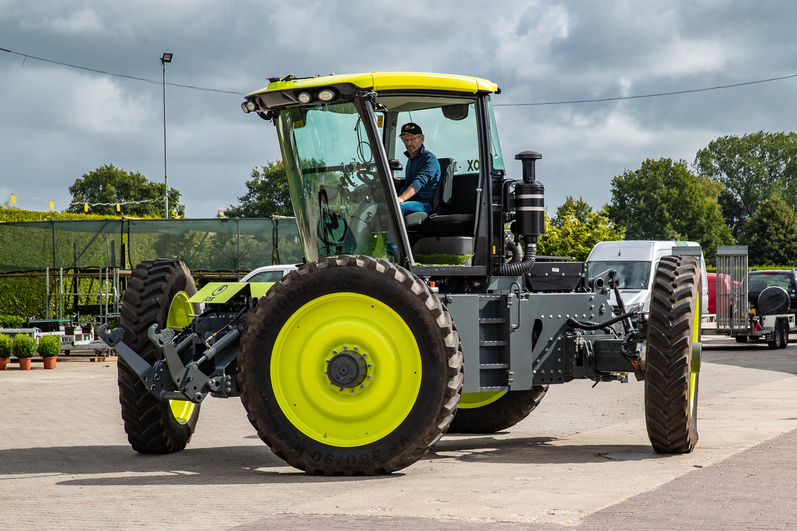

The H2Trac EOX 175 is a fully electrical tractor that can do all the work a standard tractor does but it has four-wheel steering and an adjustable track width from 2.25 to 3.20 m, which makes it suitable for various crops and tramline setups including CTF. It is currently powered by batteries with a diesel engine as range extender and in 2022 a hydrogen powered version is expected to be available.

Drive train type

5 ton rear hitch, 3.5 ton front hitch, PTO power 60-80kW, hydraulic power outlets to 100l/min @200 bar, electric power outlets 650Vdc/150Amps.

Characteristics

The robot weighs 2500 pounds. Speed goes up to 4 km/h (Eu) or 2 mph (US). Wheels center distance is US 76 to 84 inches (60 inches soon), EU 160 to 220cm.

Navigation system

The EOX 175 is fully prepared to drive with RTK-gps and the next step is complete autonomous headland management. In 2022 we will demonstrate our first autonomous drive on field.

Look for all specifications in the table below.

Manufacturer:

Name robotEOX 175
DimensionsLength : 5.20m/17.1 feet. Width : 2.25-3.20m/7.45-10.6 feet. Height: 4.40m/11.2 feet. Track width 2.25-3.20m/7.45-10.6 feet
Turning radius9.6m /31.6 feet
Weight  7.200 kg
Energy source  Batteries with a diesel engine as range extender
Energy stock/range  8 hours (diesel), 1 hour (one battery charge), 4-8 hours (one tank of hydrogen depending on the amount and pressure chosen)
Driveline  EOX 175 has a pure electric drivetrain with hybrid energy solution
Output capacity  Working speed of EOX 175 can go up to 15-20 km/h. Working width can be as wide as your implements are
Navigation systemFully prepared to drive with RTK-gps and the next step is complete autonomous headland management
Pricing  Sale. €280,000 (US $315,000), price for hydrogen version will be around €420,000 (US $473,000). Also available on lease with a long-term contract
Availability (countries)Europe
Units operational (total end 2021)  1, we are building 5 machines in 2022
