Robot(s): AgBot 2.055W3 + CF2000-AB
Task(s): Spraying and more
Development start: 2021
Pricing: €261.291 ($275.322 according to the exchange rate of 01-11-2023)
Manufacturer:

Description

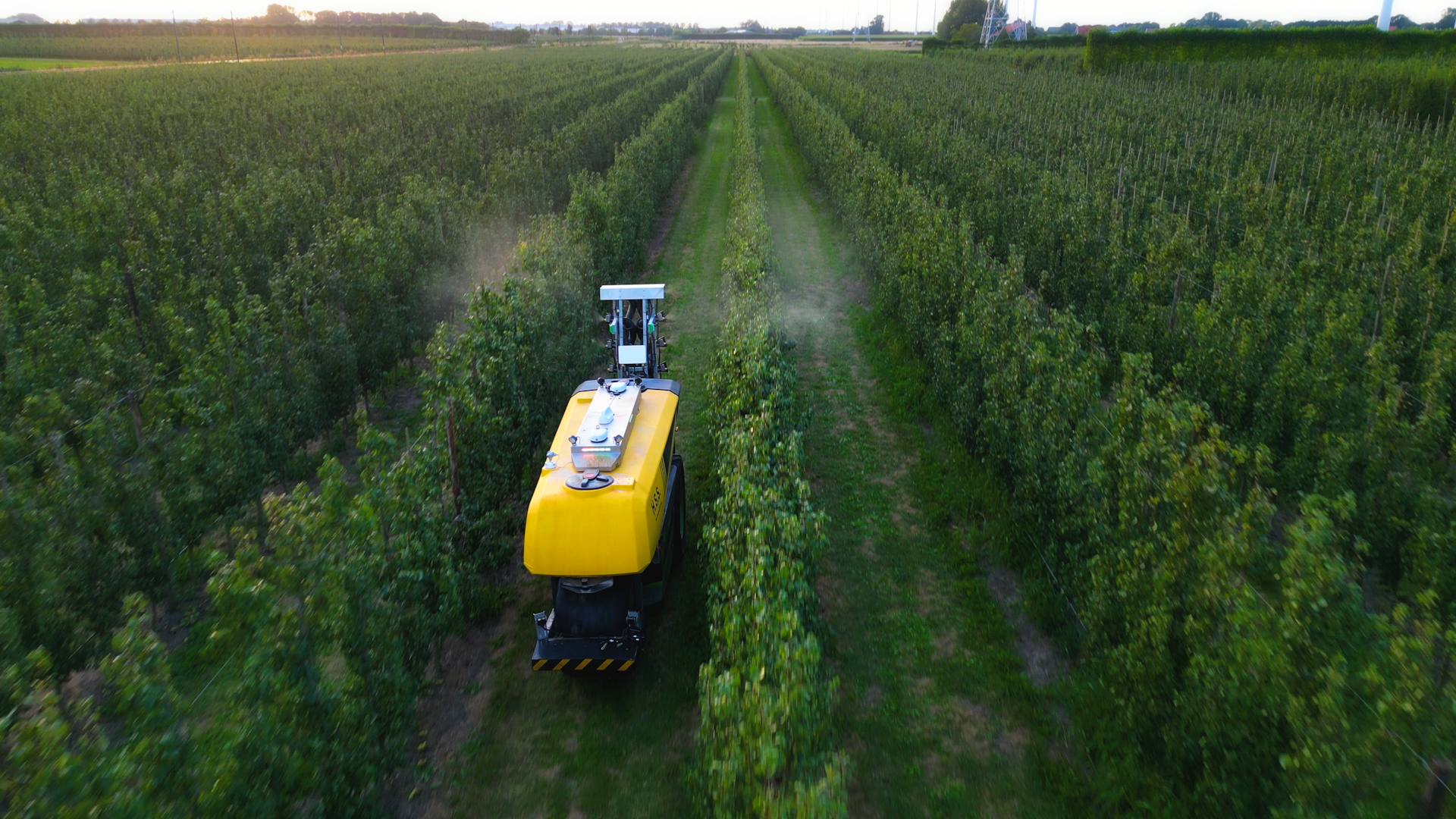

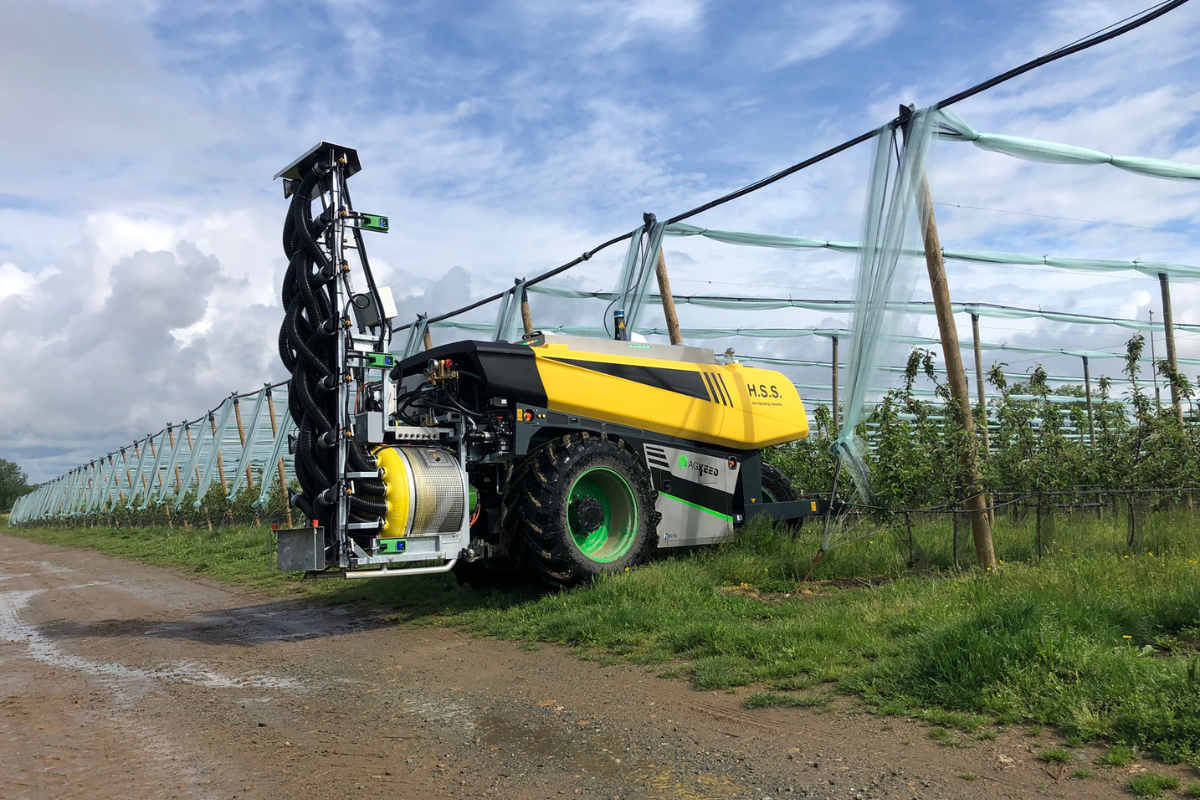

It replaces narrow track tractors in orchards to carry out applications such as mowing, spraying, weed harrowing. It is equipped with a standard hitch, PTO, aux valves, LS and on top with a high voltage connector based on the AEF high voltage standard. Its planning is done by a web based portal which also provides task and machine related data for decision making. It works completely autonomous and covers high safety standards for unsupervised operation without hard fencing your orchards.

Drive train type

Diesel electrical. Diesel engine drives generator, generator drives electric drives for driving and PTO and direct electrical power for implements.

Characteristics

55 kw engine, 3 ton lifting capacity, round about 45 kw PTO power (0-1200 rpm left and right run), 3 double acting hydraulic aux valves, Load Sensing.

Navigation system

LiDAR, ultrasonic and tactile sensors to avoid collision with not planned obstacles. The routes are based on the tree lines that were mapped with GPS in advance. Those technologies are independent from daylight. The portal calculates the routing automatically based on the tree lines and the implements the robot is carrying. The complete task with the routing and all application set points are sent to machine via cell phone network.

Specifications

Name robot AgBot 2.055W3 + CF2000-AB
DimensionsLength : 4.0m/13.15 feet. Width : 1,38 m/4.63 feet. Height: 1,50m/4.11 feet. Track width 0.98m/3.26feet
Turning radius6.0 m/19.82 feet
Weight  2.900 kg
Energy source  Diesel electrical. Diesel engine drives generator
Energy stock/range  Up to 24 hours
Driveline  Diesel engine drives generator, generator drives electric drives for driving and pto and direct electrical power for implements
Output capacity  Not indicated
Navigation systemLiDAR, ultrasonic and tactile sensors to avoid collision with not planned obstacles. The routes are based on the tree lines that were mapped with GPS in advance
Pricing  €261.291 ($275.322 according to the exchange rate of 01-11-2023)
Availability ( countries)The Netherlands, Canada, France, Italy, New Zealand
Units operational (total end 2023)  10
