Robot: Oz
Task(s): Weeding robot and farmhand
Development start: 2014
Pricing: €40,000 (US $42,148 according to the exchange rate of 01-11-2023).
Manufacturer:
Description

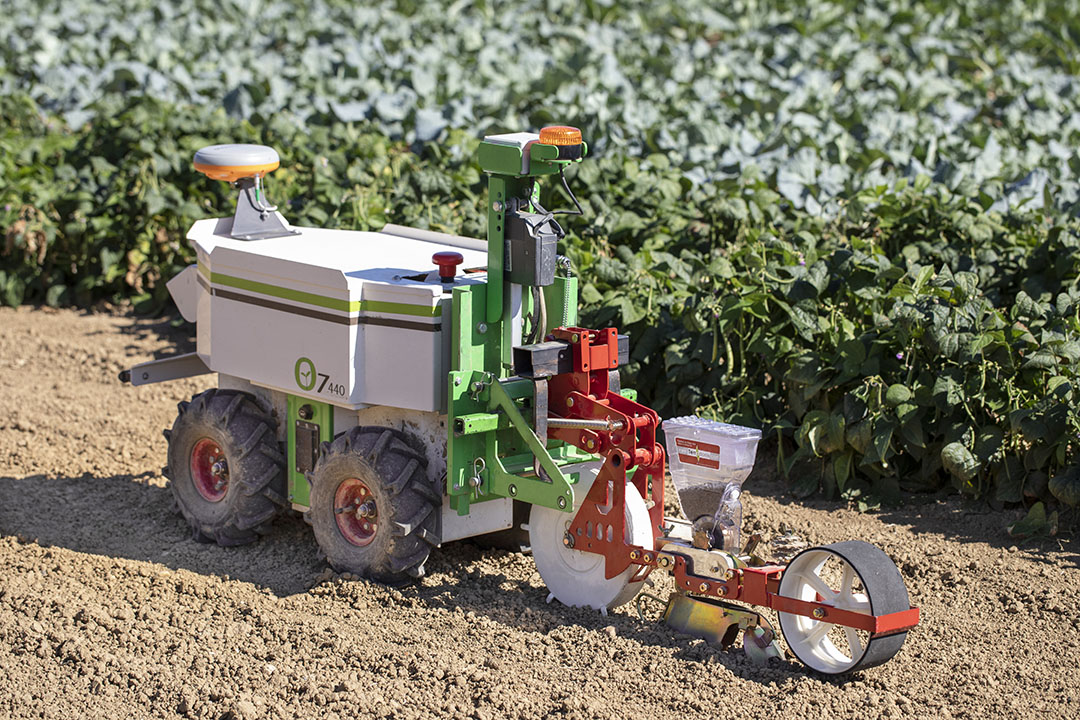

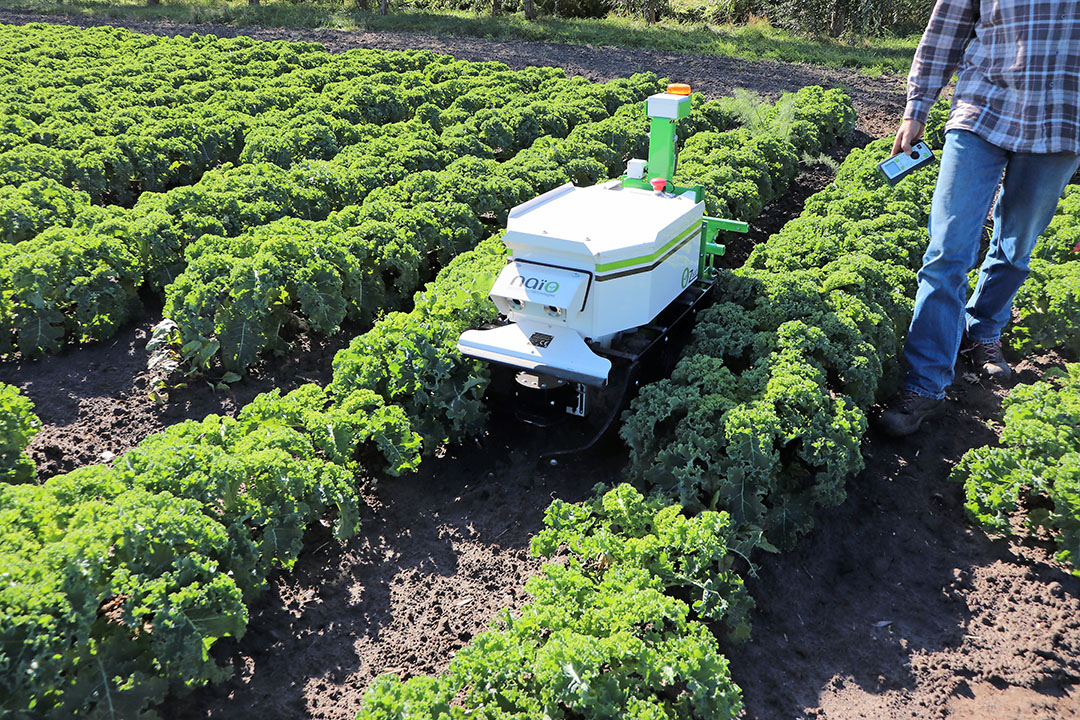

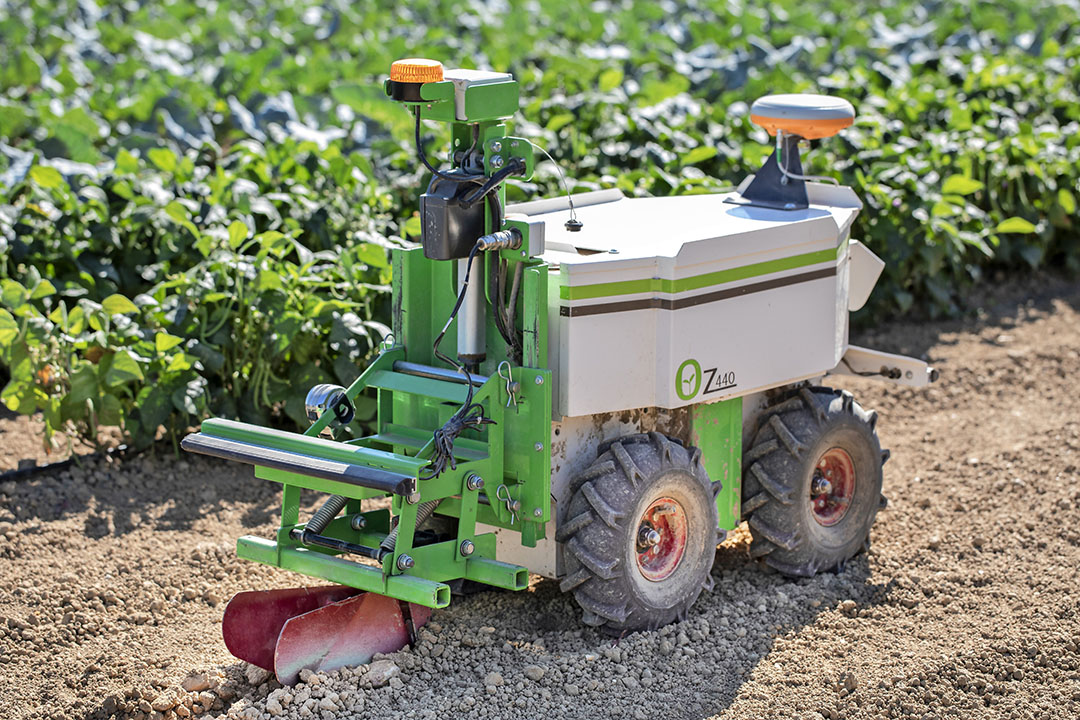

The Naïo Oz is the first robot developed by Naïo. This small LeFePo4 lithium battery powered electrically driven robot can be used as a farmhand and robot for many tasks such as seeding and planting, open furrow ploughing and mechanical weeding. The small robot weighs just 180 kg and for navigation it uses RTK GNSS following reference waypoints created in the field.
Drive train type
The robot is battery-powered and electrically driven.
Characteristics
The tool carrier in the back can lift up to 60 kg with the new front weight kit.
Navigation system
The Oz is guided by GNSS and RTK corrections via a cellular network provided from a local supplier. There are two ways to plan the paths. First is so called ROBO mapping and therefore the system guides you through the menu to set A and B and set the turning direction and the distance between the paths. The second method is to use the battery powered GNSS receiver, connect it via Wi-Fi with your smartphone and lock the relevant positions in your field. Afterwards share that with your dealer or the Naïo team to create a map and upload this via USB to the robot. Obstacles are detected with the pressure sensitive sensor in the front.
Specifications
| Name robot | Oz |
| Dimensions | Length: 1.30m/4.32 feet. Width: 0.47m/1.65 feet. Height: 0.83m/2.87 feet. Track width unknown |
| Turning radius | 1.0m/3.33 feet |
| Weight | 150 kg (+30 kg for front weight kit) |
| Energy source | 100Ah battery pack |
| Energy stock/range | Up to 8 hours |
| Driveline | 4-wheel drive |
| Output capacity | Up to 1 ha per charge |
| Navigation system | GPS RTK guidance |
| Pricing | €40,000 (US $42,148 according to the exchange rate of 01-11-2023). |
| Availability (countries) | Is for sale worldwide |
| Units operational (total end 2023) | 220 (according to 2022 information) |
